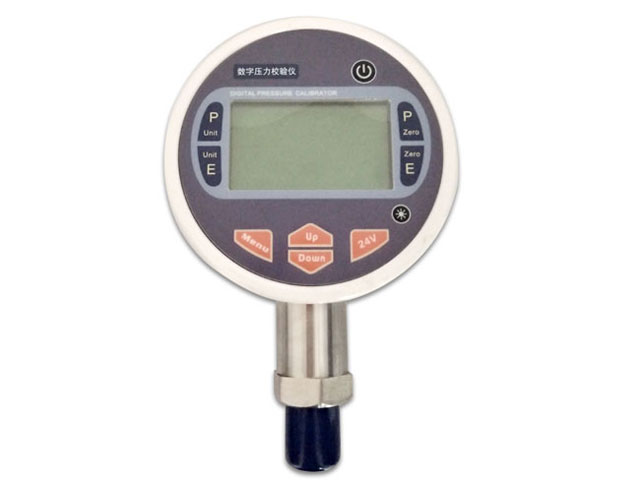

DY-601 intelligent pressure calibrator is a single range, with full range pressure measurement, high accuracy DC current, voltage measurement and 24VDC power output function of the instrument.
Can be used for calibration of ordinary (precision) pressure gauges, pressure transmitters, pressure regulating valves, pressure switches and real-time pressure measurement.
Main parameters: Gauge pressure, differential pressure, 0.05%FS, 0.02%FS and other specifications can be selected
Pressure range :(-0.095-2.5) MPa, (0-60) MPa
Main applications: calibration of intelligent pressure transmitter, ordinary pressure transmitter, ordinary pressure gauge, precision pressure gauge, pressure switch, etc.
Main Applications: Calibration Intelligent Pressure (Differential Pressure) Transmitter;
Verify the ordinary pressure (differential pressure) transmitter;
Check the pressure switch;
Verify precision pressure gauge, general pressure gauge.
[Product Features]
1. High accuracy and reliability
2. Built-in pressure module, and can be connected to the intelligent digital pressure module
3. Two-point calibration, convenient for user operation
4. Data backup, strong data correction function
5. MmH2O, mmHg, InH2O, Pa, KPa, Mpa, PSI, bar, mbar multiple pressure unit switch
[Technical indicators]
Electrical measurement indicators
Measurement functions
Range
Indicator
Electricity
25.0000 mA
Accuracy±（0.02%RD+0.003%FS）
Voltage
25.0000 V
Accuracy±（0.02%RD+0.003%FS）
Switch
On/Off
If switch with patrol voltage, voltage range (1~12) V
Power output
DC24V±0.5V
Maximum output current 50mA, overload protection current 120mA
Power supply configuration
Power supply: internal battery or special adapter power supply
Battery working time: about 100 hours, 24V with the corresponding shortening
Battery charge time: about 3 hours
Other indicators
Overall dimensions: header Φ 39 mm, 114 mm * 180 mm
Weight: 0.6 kg
Pressure interface: M20×1.5
Communication interface: RS232
Ambient temperature: (-20~70)℃
Temperature compensation: (0~50)℃
Relative humidity: <95%
Atmospheric pressure: (86~106)kPa
Storage temperature: (-40~85)℃
